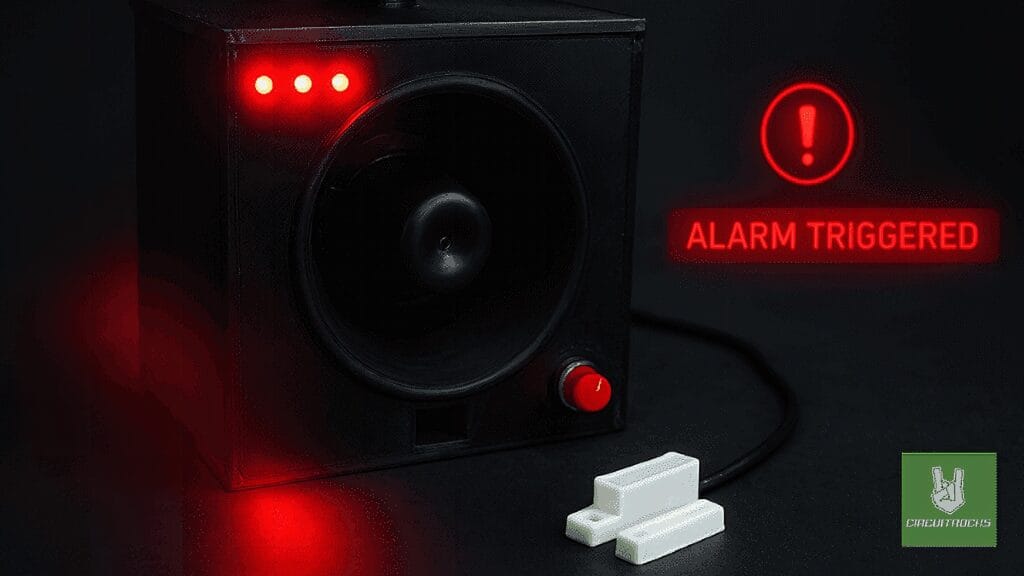

Interested in a quick, reliable way to know the moment a door opens? 📢🧲 The DIY 3D-Printed Magnetic Door Alarm does exactly that using a magnetic (reed) switch, a loud siren or buzzer, and a status LED inside a compact, custom enclosure. One small kit gives you instant, local alerts without apps or Wi-Fi.
The 3D-printed case keeps the build neat and sturdy while letting you match different door frames and gaps. Parts are basic—magnet + switch on the door/frame, a 12 V supply, and simple point-to-point wiring—so you can assemble and test in under an afternoon.
Because the design is modular, you can change loudness, LED color, and mounting style without touching the core circuit. That makes it beginner-friendly today and upgrade-ready tomorrow.
Why Build a 3D Magnetic Door Alarm?
Store alarms are fixed; this one is tunable. You choose the sound profile (siren, piezo buzzer, or both), LED behavior, and enclosure shape so it blends with your space or stands out for visibility.
It’s repairable and affordable. Every part is off-the-shelf, so replacements are cheap and quick. There’s no cloud, subscription, or app—just reliable hardware that works even during internet outages.
It’s also a learning platform. You’ll practice sensors, basic DC power, and enclosure design—skills you can reuse for motion sensors, window contacts, or a future smart alarm system.
What You’ll Learn
By building this 3D Magnetic Door Alarm, you will:
- Understand how a magnetic switch trigger works.
- Learn how to connect buzzers and LEDs for alarms.
- See why current flow management improves efficiency.
- Gain hands-on experience in simple circuit assembly.
What You’ll Need
Electronic Components
- Magnetic Switch Door – detects when the door is opened/closed
- Wired Outdoor Siren – produces the loud alarm sound
- DC Motor Speed Controller – is mainly used to adjust the volume
- 5 mm LED – visual alert when alarm is triggered
- 12 Battery 8 x AA
- AA Batteries
- Female Plug Terminal
Tools & Accessories
Circuit Diagram:

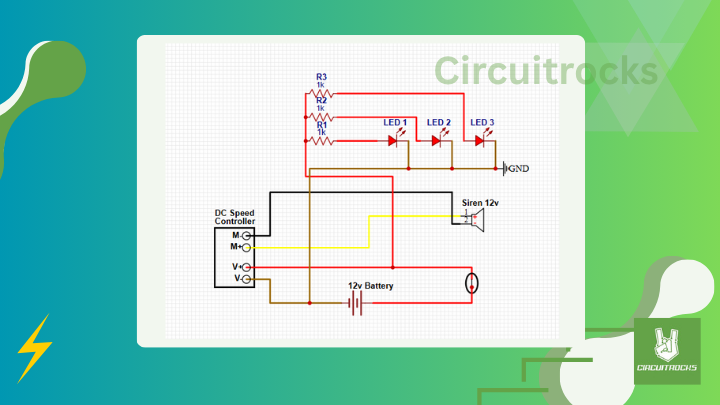

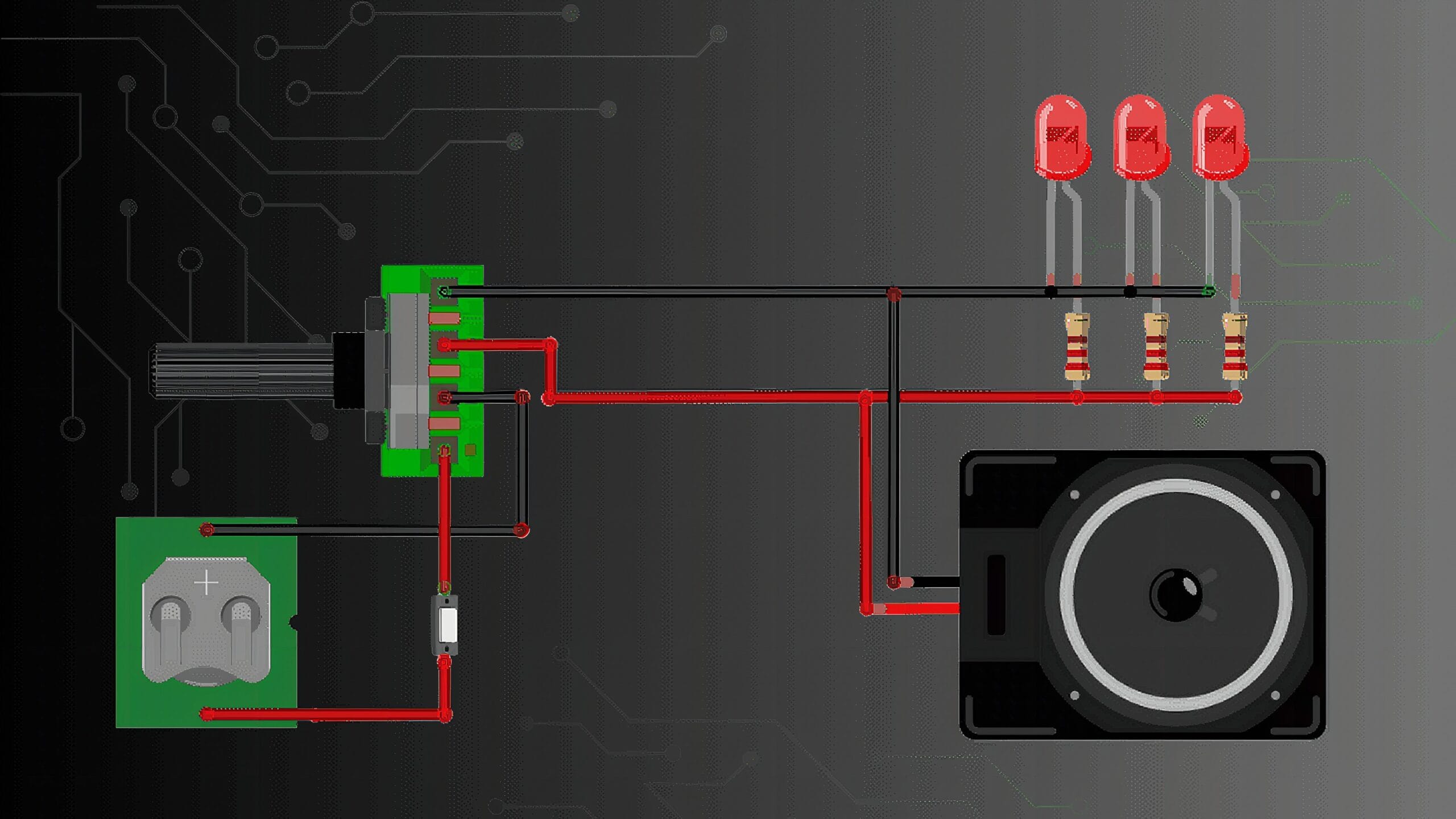

How it Works ?
At the heart is a reed switch magnet. Use an NC (normally closed) type wired in series with the alarm: when the door is closed, the magnet sits near the reed and opens it, so the circuit is broken and the siren is off—this is the safe, idle state.
When the door opens, the magnet moves away and the reed closes, completing the circuit so current flows from the 12 V supply through the siren/buzzer and the LED. The LED has its own series resistor; the sounder draws directly or via a driver, depending on current.
If your siren needs more current than a small switch can handle, drive it with a logic-level N-MOSFET or relay. Add a flyback diode across relay coils and size a fuse for safety. Optional RC delay or a 555 can create a brief hold-on so the alarm sounds long enough to notice.
Applications & Extensions
Start with straightforward jobs: door or cabinet alerts in apartments, a mailbox-open indicator, or a shop-door chime by swapping the siren for a softer buzzer. Everything works offline, so it’s dependable even during internet outages.
Add smart features as you grow: tie in an Arduino/ESP32 for logs and notifications, implement entry/exit delays or latching modes, and add a tamper switch that triggers if the enclosure is opened. You can also drive multiple zones by duplicating the LED branch and adding more contacts.
Harden it for daily use: print a tougher case, add foam or an O-ring for light sealing, use screw terminals and strain relief, and include a low-battery LED if you run from a pack. Align the magnet and reed carefully for consistent triggering, and you’ve got a robust, customizable door alarm.
📹 Watch the Full Demo Video
Here’s the full demo video of our DIY 3D-Printed Magnetic Door Alarm in action. Watch how the magnetic switch, LED, and buzzer work together to create an instant security alert system.
